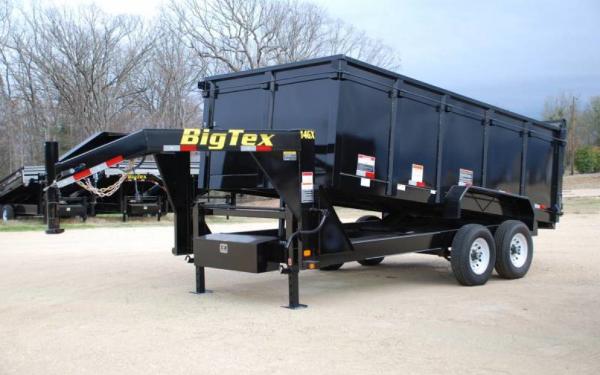

Tandem Axle Low Profile Extra Wide Dump Trailer
Call for Quote
(803) 372-9795Richburg, SC
For the ultimate in strength and durability, look to the 14GX Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer - from its robust and long-lasting structure and frame to heavy-duty dump box with 10-Gauge steel floors. Packed to the brim with the most complete box unit in the industry, the 14GX is designed to handle heavy-duty and extra wide loads with superior stability and efficiency.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Tandem Axle Low Profile Extra Wide Dump Trailer
14GX Tandem Axle Low Profile Extra Wide Dump Trailer
Specs:
*G.A.W.R. (Ea. Axle) 7,000lbs
*2-5/16" Adjustable Pipe Coupler
*3/8" Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
*Dual 12K SW Drop Legs Jacks
*10" I-Beam Neck
*8"x3" Rectangular Tubing Frame
*8" Channel Crossmembers
*3" Channel Bed Crossmembers
*3" Channel Bed Long Sils
*6-1/2" Formed Angle Bed Side Rails
*Double Square Broke Diamond Plate Fenders
*Two 7,000lb EZ Lube w/Electric Brake Axles
*Multi Leaf Slipper Spring w/Equalizer Suspension
*ST235-80 R-16 Load Range E Tire
*16x6 HD White Modular 8 Bolt Wheel
*10 Gauge Smooth Steel Floor
*LED D.O.T. Stop, Tail, Turn and Clearance Lights
*7-Way RV Electrical Plug
*Steel is Cleaned to Ensure a Professional Smooth Finish
*Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
*Safety Chains Attached w/Cold Rolled Eyelets
*Pump & Battery Box Mounted in Front of Bed
*Modular Sealed Wiring Harness
*24", 12 Gauge Sides w/Formed Channel Supports
*10 Gauge Floor
*J-Hooks for Tie Down
*Stake Pockets
*Fully Formed Shroud for Tarp
*4-5/8" D-Rings Inside Bed
*Fully Self-Contained Electric Hydraulic Scissor Lift
*5 Amp Charger
*Spare Tire Mount
*Cambered EZ Lube Axles w/Electric Brake on Each
*Complete Break-A-Way System w/Charge Line
*Combo Gate
*Grommet Mount Sealed LED Lighting
*Hoist Comparison
--FULL--
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 9360 lbs.
- External Width:
- 83"
- External Length:
- 14'
- Hitch Type:
- Gooseneck
- Category:
- Dump Trailers
- Condition:
- New
- Material:
- Steel
- Color:
- Black
- GVWR:
- 14000
- Capacity:
- 9360
Features/Specifications
Features
| Axle | (2) 7,000# Quick Lubricating w/Elec. Brakes |
|---|---|
| Jack | Dual 12,000# Drop Leg - Side Wind |
| Neck | 10" I-Beam |
| Tire | ST235/80 R-16 Load Range E |
| Floor | 10 Gauge Smooth Steel |
| Wheel | 16" x 6"; HD Black Mod 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Coupler | 2-5/16" Adjustable Pin (25K) |
| Fenders | 9" x 72" 14 Ga. Diamond Plate Souble Square Broke |
| G.V.W.R. | 15,900# |
| Elec. Plug | 7-Way RV |
|---|---|
| Hitch Type | Gooseneck |
| Main Frame | 8" I-Beam, 10# |
| Suspension | Multi-Leaf Spring w/Equalizer |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| Dump Body Sides | 24" Tall Sides (10 Gauge) |
| Dump Body Top Rail | 3" x 2" Rectangular Tubing |
| G.A.W.R. (Ea. Axle) | 7,000# |
| Dump Body Crossmembers | 3" Channel, 16" Centers |
Specifications
Big Tex 14GX Heavy Duty Tandem Axle Extra Wide Gooseneck Dump Trailer
| Model | Description |
|---|---|
| 14GX-14 | 83" x 14' Heavy Duty Tandem Axle Gooseneck Dump |
| 14GX-16 | 83" x 16' Heavy Duty Tandem Axle Gooseneck Dump |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 14' | 4,640# | 11,260# | 7 Cubic Yards |
| 16' | 5,000# | 10,900# | 8 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Round Adjustable Pin 2-5/16" Gooseneck Coupler (25K)
- Dual 12,000# Drop Leg (Side Wind)
- Lockable Pump & Battery Box Mounted Between Jacks
- 24" Tall, 12 Gauge Sides w/Formed Channel Supports
- 10 Gauge Steel Floor and Sides
- Fully Formed Tarp shroud on Front
- Crank Style Roll Tarp - Standard Equipped
- Tarp Rod Included to Secure Tarp on Rear
- J-Hooks on Sides & Rear for Tarp Control
- Stakepockets Along Sides
- Self Contained Electric/Hydraulic Scissor Hoist
- Power Up/Power Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- 110V On-Board Battery Charger (5 Amp)
- Premium Brand Axles
- Cambered Axles w/Quick Lubricating Hubs
- Forward Self-Adjusting Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Break-A-Way System
- Zip Breakaway Cable
- Diamond Plate Fenders
- 2" square Tubing Top Rail on Dump Bed
- Combo Gate (Barn Doors & Spreader Gate)
- (4) 1/2" D-Rings Inside Bed to Secure Equipment
- Spare Tire Mount
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| AXLES | Drop Axles (Lowers Deck Height to 24" from Ground) |
| BODY | 24" Expanded Metal Side Extensions |
| BODY | 3 Solid Sheet Metal Sides |
| BODY | 4 Solid Sheet Metal Sides |
| BODY | Removable Deck on the Neck- Bolt On (8 W x 6 L) |
| BODY | Upgrade Floor to 7-Gauge Steel |
| JACK | Dual 2-Speed Landing Gear |
| JACKS | Dual Elec/Hyd 12,000# Jacks by Stillwell |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote |
| RAMPS | 6.5 Slide In Ramp Package |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/85 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G) |
