Tandem Over The Axle Dump Trailer
Call for Quote
(803) 372-9795Richburg, SC
Is your work always changing and requiring you to adapt on the fly? Then you need a trailer that does the same. Versatility is the name of the game for the 14OD Over-The-Axle Dump Trailer, built to ensure that youre prepared to take on whatever type of load comes your way. Available in either gooseneck or bumper pull configurations, its full 96"-wide body is both strong and spacious - perfect for larger loads. And when faced with a heavy-duty haul, its fold-down side panels make loading and unloading it a snap. Ready for anything, the 14OD is here to change how you work.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Tandem Over The Axle Dump Trailer

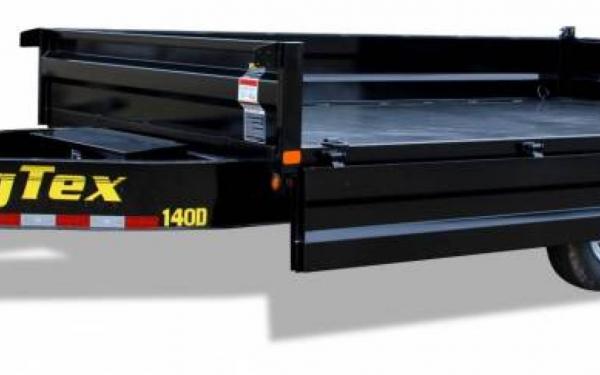

14OD Tandem Over The Axle Dump Trailer
14OD-14
Specs:
*G.A.W.R. (Ea. Axle) 7,000#
*2-5/16" Adjustable Pipe Coupler
*3/8" Grd. 70 Safety Chains w/Safety Latch Hook (2 each)
*12K TW Drop Leg Jacks
*12" I-Beam Tongue
*12" I-Beam Frame
*4" I-Beam and 3" x 3" Tube Crossmembers
*3" Channel Bed Crossmembers
*5" Channel Bed Long Sils
*4" x 3" Angle Bed Side Rails
*Two 7,000# EZ Lube Axles w/Elec. Brakes
*Multi-Leaf Slipper Spring Suspension w/Equalizer
*ST235/80 D-16 Load Range E Tires
*16 x 6 HD White Modular 8 Bolt Wheel
*10 Gauge Smooth Steel Floor
*D.O.T Stop, Tail, Turn & Clearance
*7-Way RV Elec. Plug
*Steel is Cleaned to Ensure a Professional Smooth Finish.
*Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
*Safety Chains Attached w/Cold Rolled Eyelets
*Lockable Pump and Battery Box Mount in Front of Bed
*Modular Sealed Wiring Harness
*18", 10 Ga. Fold Down Sides
*10 Ga. Floor
*Fully Formed Shroud for Tarp
*4-5/8" D-Rings Inside Bed
*Fully Self Contained Electric Hydraulic Scissor Lift
*45 Degree Dump Angle
*5 Amp Charger
*Spare Tire Mount
*Cambered EZ Lube Axles w/Electric Brake on Each
*Complete Break-A-Way System w/Charge Line
*Grommet Mount Sealed LED Lighting
*7' Slide In Ramps
*Combo Gate
*Hoist Comparison
--FULL--
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 8850 lbs.
- External Width:
- 96"
- External Length:
- 14'
- Hitch Type:
- Gooseneck
- Category:
- Dump Trailers
- Condition:
- New
- Material:
- Steel
- Color:
- Black
- GVWR:
- 14000
- Capacity:
- 8850
Features/Specifications
Features
| Axle | (2) 7,000# Quick Lubricating w/Elec. Brakes |
|---|---|
| Jack | 12,000# Top Wind Drop Leg |
| Tire | ST235/80 R-16 Load Range E |
| Floor | 10 Gauge Smooth Steel |
| Frame | 12" I-Beam, 14# |
| Wheel | 16" x 6" Black Mod 8 Bolt |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | Integral with Frame (12" I-Beam, 14#) |
| Coupler | Adj. 2-5/16" 18,000# Demco EZ Latch |
| G.V.W.R. | 14,000# |
|---|---|
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/Equalizer |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| Safety Chains | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| Dump Body Sides | 18" Tall, Drop-Down Sides (12 Gauge) |
| Bed Crossmembers | 3" Channel, 16" Centers |
| Dump Body Top Rail | 2" x 2" Square Tubing |
| G.A.W.R. (Ea. Axle) | 7,000# |
Specifications
Big Tex 14OD Over-The-Axle Dump Trailer
| Model | Description |
|---|---|
| 14OD-14 | 96" x 14' Over the Axle Bumper Pull Dump |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 14' | 4,550# | 9,450# | 6.2 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Adjustable 2-5/16" Demco EZ Latch Coupler
- 12,000# Top Wind Drop-Leg Jack
- Lockable Pump & Battery Box Mounted in Front of Bed
- 18" Tall, 12 Gauge Fold-Down Side Panels
- 10 Gauge Steel Floor
- Fully Formed Tarp Shroud on Front
- Crank Style Roll Tarp- Standard Equipped
- J-Hooks on Sides & Rear for Tarp Control
- Self Contained Electric/Hydraulic Scissor Hoist
- Power Up/Power Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- 110V On-Board Battery Charger (5 Amp)
- Premium Brand Axles
- Cambered Axles w/Quick Lubricating Hubs
- Forward Self Adjusting Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Break-A-Way System
- Zip Breakaway Cable
- 2" Square Tubing top Rail on Dump Bed
- Combo Gate (Barn Doors & Spreader Gate)
- (4) 1/2" D-Rings Inside Bed to Secure Equipment
- 7 Rear Slide-In Ramps - Standard Equipped
- Spare Tire Mount
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| JACK | 12,000# Elec/Hyd. Jack BY Stillwell |
| JACKS | Dual Elec/Hyd 12,000# Jacks by Stillwell |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/85 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G) |
