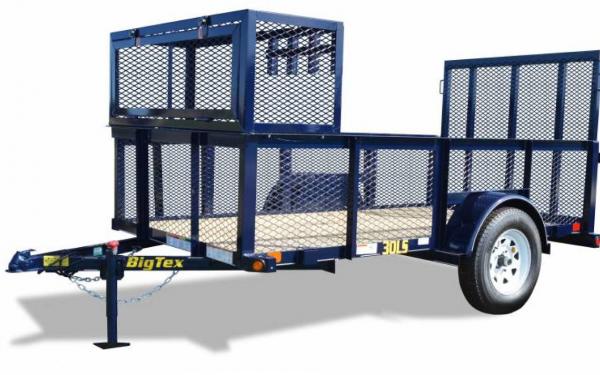

Single Axle Landscape Trailer
Call for Quote
(803) 372-9795Richburg, SC
At five feet wide and 10 feet long, the 30LS Single Axle Landscape Trailer is a compact landscaping powerhouse. Complete with tool holders, lockable landscape boxes and two foot expanded metal sides, the 30LS is a tailored landscaping solution.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Single Axle Landscape Trailer
30LS Single Axle Landscape
Specs:
*G.A.W.R. 2,995#
*Coupler 2" A-Frame
*Safety Chains 1/4" Grd. 30 w/Safety Latch Hook (2 each)
*Jack 2K Top Wind (Bolted On)
*Tongue 3" Channel
*Top Rail 3" x 2" x 3/16" Angle
*Frame 3" x 2" x 3/16" Angle
*Crossmembers 3" x 2" x 3/16" Angle
*Uprights 3" x 2" x 3/16" Angle, 3" x 2" Tube
*Fenders 9" x 32" Rolled Formed w/Back
*Axle 3,500# EZ Lube w/Brake Flanges
*Suspension Multi-Leaf Slipper Spring
*Tire ST205/75-15 Load Range C
*Wheel 15 x 5 White Spoke 5 Bolt
*Floor 2" Pine
*Lights LED D.O.T. Stop, Tail, Turn, & Clearance
*Elec. Plug 4-Way Flat w/Loom
*Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
*Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
*Safety Chains Attached w/Cold Rolled Eyelets
*Sand Foot on Jack
*24" x 24" x Width of Trailer, Lockable Landscape Box Mounted on Front of Trailer
*2' Sides Enclosed w/Expanded Metal
*5 Tool Holders on Rear of Landscape Box
*Floor Secured w/Torx Screws
*3,500# EZ Lube Axle w/Brake Flanges for Easy Brake Addition
*4' Fold Flat Rampgate w/Expanded Metal
*30LS has 3 Center Uprights in Gate
*35LS has 5 Center Uprights in Gate
*Grommet Mount Sealed LED Lighting
--FULL--
- Availability:
- Order In
- Axle Config:
- Single
- Max Payload:
- 1735 lbs.
- External Width:
- 60"
- External Length:
- 10'
- Hitch Type:
- Bumper Pull
- Category:
- Landscape Trailers
- Year:
- 2015
- Condition:
- New
- Material:
- Steel
- Color:
- Black
- GVWR:
- 2995
- Capacity:
- 1735
Features/Specifications
Features
| Axle | 3,500# EZ Lube Axle w/ Brake Flanges |
|---|---|
| Jack | 2,000# Top Wind (Bolted On) |
| Tire | ST205/75R-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 3" x 2" x 3/16" Angle |
| Sides | 24" Sides Enclosed w/ Expanded Metal |
| Wheel | 15" x 5; Black Spoke, 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 3" Channel |
| Coupler | 2" A-Frame |
| Fenders | 9" x 32" Rolled Formed w/ Back |
|---|---|
| G.V.W.R. | 2,995# |
| Top Rail | 3" x 2" x 3/16" Angle |
| Elec. Plug | 4-Way Flat w/ Loom |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 2,995# |
Specifications
Big Tex 30LS Single Axle Landscape Trailer
| Model | Description |
|---|---|
| 30LS-10 | 60" x 10' Single Axle Landscape Trailer |

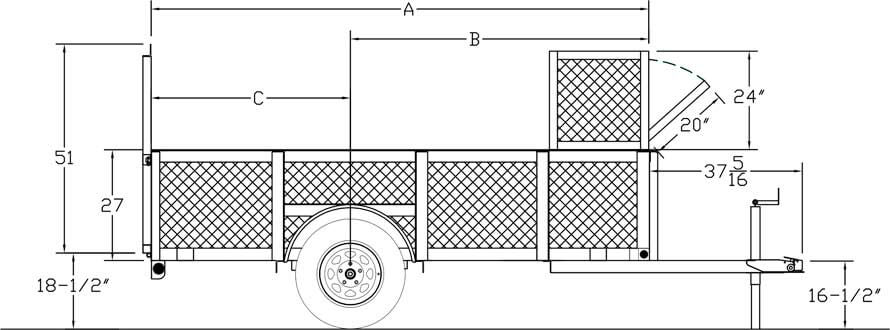

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 10' | 121-1/2" | 73" | 48-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 10' | 1,110# | 1,885# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- EZ Lube Hubs
- Dexter Brand Axle
- 24" Sides Enclosed with Expanded Metal
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Removable Sand Foot on Jack
- Radial Tires
- Brake Flanges on Axle for Easy Brake Addition
- A-Frame Channel Tongue
- (4) Tie Down Pockets on Outside of Frame
- Lockable Landscape Box (24" x 24" x Width of Trailer)
- (5) Tool Holders on Rear of Landscape Box
- 4 Tall Rear Rampgate
Optional Equipment
| Category | Description |
|---|---|
| BODY | 48" Tall Expanded Metal Sides (30LS-10) |
| BODY | Blackwood Rubber Infused Floor |
| BRAKES | Electric Brakes w/ Complete Brake-Away Kit |
| CARGO CONTROL | 3-Place Weed Trimmer Racks (Bolt On) |
| CARGO CONTROL | Additional Tie Down Pockets |
| CARGO CONTROL | Additional Tie Loops |
| COUPLER | 2" Forged Coupler |
| JACK | 2,000# Fold-Up Jack |
| JACK | Set Back Jack |
| RAMPS | 5 Tall Rear Rampgate |
| RAMPS | Gas Shock Assist Option for Rampgate |
| TIRE/WHEEL | Spare Tire & Wheel (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
