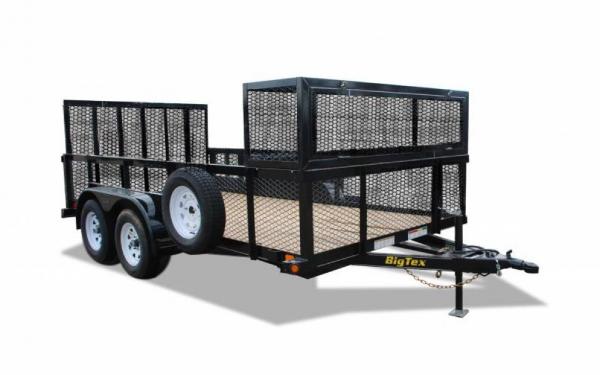

Tandem Axle Landscape Trailer
Call for Quote
(803) 372-9795Richburg, SC
Is your landscaping business transporting heavy-duty equipment and large loads? Versatile, rugged, and built to haul heavy-duty loads up to 4,880 lbs, the 70LR Tandem Axle Landscape Trailer is the answer. Weed trimmer racks, tool holders, and a lockable landscape box securely hold all your cargo and gear and allow you to stay on the job to finish the task ahead. Plus, it comes standard with two-foot expanded metal sides and a spring assisted rear ramp gate for spacious and convenient loading, unloading, and hauling of lawnmowers or other pieces of landscaping equipment. With the 70LR, youll always be ready for whats next.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Tandem Axle Landscape Trailer
70LR Tandem Axle Landscaping Trailer
Specs:
*G.A.W.R. (Ea. Axle) 3,500#
*Coupler 7K 2" Forged Coupler
*Safety Chains 1/4" Grd. 70 w/Safety Latch Hook (2 each)
*Jack 2K Top Wind-Set Back (Bolted On)
*Tongue 4" Channel Fold Back Tongue
*Top Rail 3" x 2" x 3/16" Angle
*Frame 4" x 3" x 1/4"
*Crossmembers 3" x 2" x 3/16" Angle
*Uprights 3" x 2" x 3/16" Angle
*Fenders 9" x 72" Tear Drop
*Axles Two 3,500# EZ Lube w/1 Electric Brake
*Suspension Multi-Leaf Spring
*Tire ST205/75-15 Load Range C
*Wheel 15 x 5 White Spoke 5 Bolt
*Floor 2" Pine
*Lights D.O.T. Stop, Tail, Turn, & Clearance
*Elec. Plug 7-Way RV
*Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
*Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
*Forged Coupler
*Safety Chains Attached w/Cold Rolled Eyelets
*Sand Foot on Jack/li>
*Set Back Jack
*Fold Back Tongue (14' and longer)
*24" x 24" x 87" Lockable Landscape Box Mounted on Front of Trailer
*2' Sides Enclosed w/Expanded Metal
*5 Tool Holders on Landscape Box
*Floor Secured w/Torx Screws
*Cambered EZ Lube Axles w/1 Electric Brake
*Complete Break-A-Way System w/Charger
*Grommet Mount Sealed LED Lighting
--FULL--
- Availability:
- Order In
- Axle Config:
- Tandem
- Max Payload:
- 5010 lbs.
- External Width:
- 83"
- External Length:
- 14'
- Hitch Type:
- Bumper Pull
- Category:
- Landscape Trailers
- Year:
- 2015
- Condition:
- New
- Material:
- Steel
- Color:
- Black
- GVWR:
- 7000
- Capacity:
- 5010
Features/Specifications
Features
| Axle | Two 3,500# Quick Lubricating w/ 1 Electric Brake |
|---|---|
| Jack | 2,000# Top Wind, Set Back (Bolted On) |
| Tire | ST205/75-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 4" x 3" x 1/4" |
| Sides | 3" x 2" x 3/16" Angle |
| Wheel | 15 x 5 Black Mod, 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 4" Channel Fold Back /Wrap Tongue |
| Coupler | Adjustable, 7,000#, 2" Forged Coupler |
| Fenders | 9" x 72" 16Ga. Tear Drop w/ Back |
|---|---|
| G.V.W.R. | 7,000# |
| Top Rail | 3" x 2" x 3/16" Angle |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 70 w/ Safety Latch Hook |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 70LR Tandem Axle Landscape Trailer
| Model | Description |
|---|---|
| 70LR-14 | 83" x 14' Tandem Axle Landscape Trailer |
| 70LR-16 | 83" x 16' Tandem Axle Landscape Trailer |

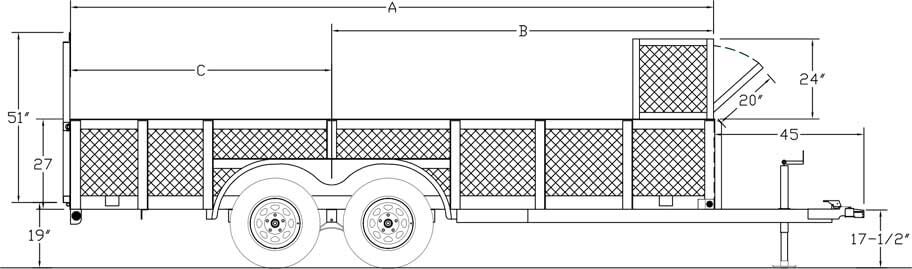

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 14' | 169-1/2" | 103" | 66-1/2" |
| 16' | 193-1/2" | 115" | 78-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 14' | 2,210# | 4,790# | N/A |
| 16' | 2,370# | 4,630# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- (4) Stake Pockets on Outside Frame
- Adjustable Forged, 7,000# Coupler
- Fold Back/Wrap Tongue
- Set-Back Jack
- Quick Lubricating Hubs
- Premium Brand Axles
- Nev-R-Adjust Electric Brakes
- Cambered Axles
- Tear Drop Style Fenders
- 24" Sides Enclosed with Expanded Metal
- Lockable Landscape Box (24" x 24" x 87") Bolt On
- (5) Tool Holders on Rear of Landscape Box
- 4 Tall Rear Rampgate-Standard Equipped
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Removable Sand Foot on Jack
- Complete Break-A-Way System w/ Charger
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | 4 Tall Expanded Metal Sides |
| BODY | Blackwood Pro Rubber Infused Floor |
| BRAKES | Electric Brakes on 2nd Axle |
| CARGO CONTROL | 3-Place Weed Trimmer Racks (Bolt On) |
| CARGO CONTROL | Additional Stake Pockets |
| CARGO CONTROL | Additional Tie Loops |
| COUPLER | 2-5/16" Forged Coupler |
| COUPLER | 2-5/16" Stamped Coupler |
| JACK | 2,000# Fold-Up Jack |
| JACK | 8,000# Drop-Leg Jack |
| RAMPS | 4 Heavy Duty Integrated Rampgate w/ Gas Shock Assist |
| RAMPS | 5 Tall Rear Rampgate w/ Coil Spring Assist in Lieu of 4" Tall Rear Rampgate |
| TIRE/WHEEL | Spare Tire (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
| TIRE/WHEEL | Spare Tire Upgrade (ST225/75R-15 LR-D) |
| TIRE/WHEEL | Tire Upgrade (ST225/75R-15 LR-D) |
