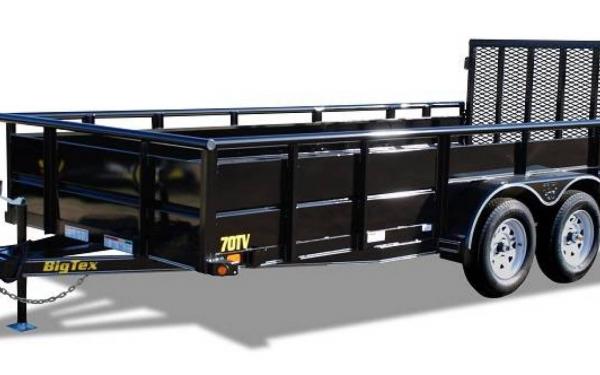

Big Tex 16' Tandem Axle Vanguard
Call for Quote
(803) 372-9795Richburg, SC
Get more cargo space with the extra wide 70TV Tandem Axle Vanguard Trailer. An 83 wide trailer thats equipped with higher, v-crimped steel sides for maximum strength, durability, and protection, the 70TV features reliable steel-belted radial tires that keep you on the road safely. Its up to the task to haul lawn and garden equipment for heavy-duty landscaping jobs with its 7,000 lbs G.V.W.R. Built for the long haul, this rugged trailer is the perfect fit for professional landscapers and homeowners who put in long hours to look after their lawn and garden.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex 16' Tandem Axle Vanguard
70TV-16BK
Specs:
- G.A.W.R. (Ea. Axle) 3,500#
- Coupler 7K 2" Forged Coupler
- Safety Chains 1/4" Grd. 70 w/Safety Latch Hook (2 each)
- Jack 2K Top Wind-Set Back (Bolted On)
- Tongue 4" Channel Fold Back Tongue
- Top Rail 2-3/8" Pipe Top Rail
- Frame 4" x 3" x 1/4" Angle
- Crossmembers 3" x 2" x 3/16" Angle
- Uprights 3" x 2" x 3/16" Angle
- Fenders 9" x 72" Tear Drop
- Axles Two 3,500# EZ Lube w/1 Electric Brake
- Suspension Multi-Leaf Spring
- Tire ST205/75-15 Load Range C
- Wheel 15 x 5 White Spoke 5 Bolt
- Floor 2" Pine
- Lights LED D.O.T. Stop, Tail, Turn, & Clearance
- Elec. Plug 7-Way RV
- Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
- Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Forged Coupler
- Safety Chains Attached w/Cold Rolled Eyelets
- Sand Foot on Jack
- Set Back Jack
- Lower Jack Support Plate
- Fold Back Tongue (14' and longer)
- 83" Wide (Inside)
- 29-3/8" 16 Ga. Sides w/24" V-Crimped Steel Panels & 2-1/2" Opening
- 2-3/8" Pipe Top Rail
- Floor Secured w/Torx Screws
- 4 Tie Down Loops Inside
- Cambered EZ Lube Axles w/1 Electric Brake
- Complete Break-A-Way System w/Charger
- Grommet Mount Sealed LED Lighting
- Availability:
- In Stock
- Axle Config:
- Tandem
- Max Payload:
- 5155 lbs.
- External Width:
- 83"
- External Length:
- 16'
- Hitch Type:
- Bumper Pull
- Category:
- Landscape Trailers
- Year:
- 2015
- Condition:
- New
- Material:
- Steel
- Color:
- Black
- GVWR:
- 7000
- Capacity:
- 5155
Features/Specifications
Features
| Axle | (2) 3,500# Quick Lubricating w/ (1) Elec. Brake |
|---|---|
| Jack | 2,000# Top Wind, Set-Back Jack |
| Tire | ST205/75R-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 4" x 3" x 1/4" Angle |
| Sides | 24" Tall V-Crimped Steel Sides |
| Wheel | 15" x 5"; Black Mod 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 4" Channel Fold Back/Wrap Tongue |
| Coupler | Adjustable, 7,000#, 2" Forged Coupler |
| Fenders | 9" x 72" 16 Ga. Tear Drop w/Back |
|---|---|
| G.V.W.R. | 7,000# |
| Top Rail | 2" x 2" Square Tubing |
| Elec. Plug | 7-Way RV |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring w/ Equalizer |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 70 w/ Safety Latch Hook |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 70TV Tandem Axle Vanguard Trailer
| Model | Description |
|---|---|
| 70TV-12 | 83" x 12' Tandem Axle Vanguard Trailer |
| 70TV-14 | 83" x 14' Tandem Axle Vanguard Trailer |
| 70TV-16 | 83" x 16' Tandem Axle Vanguard Trailer |
| 70TV-18 | 83" x 18' Tandem Axle Vanguard Trailer |

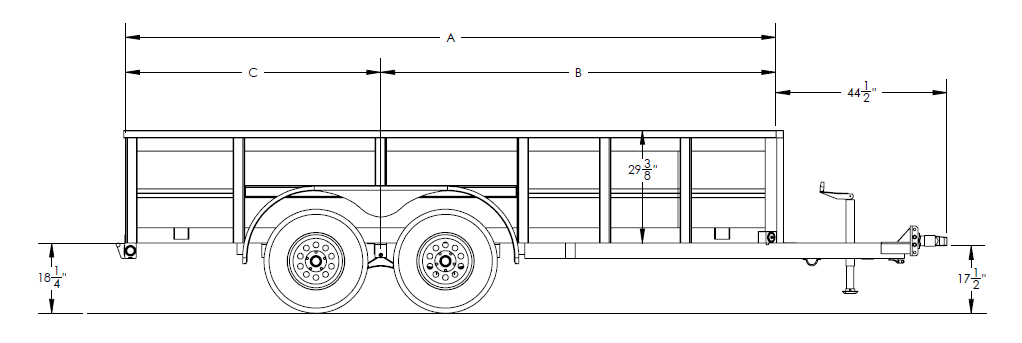

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 12' | 145-1/2" | 85" | 60-1/2" |
| 14' | 169-1/2" | 103" | 66-1/2" |
| 16' | 193-1/2" | 115" | 78-1/2" |
| 18' | 217-1/2" | 127" | 90-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 12' | 1,665# | 5,335# | N/A |
| 14' | 1,755# | 5,245# | N/A |
| 16' | 1,845# | 5,155# | N/A |
| 18' | 1,935# | 5,065# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- (4) Stake Pockets on Outside Frame
- Adjustable Forged, 7,000# Coupler
- Fold Back/Wrap Tongue (14 & Longer)
- Set-Back Jack
- Quick Lubricating Hubs
- Premium Brand Axles
- Forward Self Adjusting Electric Brakes
- Cambered Axles
- Durable Tubing Top Rail
- 24" V-Crimped Steel Panels
- Tear Drop Style Fenders
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Removable Sand Foot on Jack
- Complete Break-A-Way System w/ Charger
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | Blackwood Pro Rubber Infused Floor |
| BRAKES | Electric Brakes on 2nd Axle |
| CARGO CONTROL | 3-Place Trimmer Racks (Bolt On) |
| CARGO CONTROL | 5-Place Tool Holder (Bolt On to Landscape Box) |
| CARGO CONTROL | Additional Stake Pockets |
| CARGO CONTROL | Additional Tie Down Pockets |
| CARGO CONTROL | Bolt-On Landscape Box (24" x 24" x 87") |
| COUPLER | 2-5/16" Forged Coupler |
| COUPLER | 2-5/16" Stamped Coupler |
| JACK | 2,000# Fold-Up Jack |
| JACK | 8,000# Drop-Leg Jack |
| RAMPS | 4 Heavy Duty Integrated Rampgate w/Gas Shock Assist |
| RAMPS | 4 Tall Rear Rampgate w/ Coil Spring Assist |
| RAMPS | 5 Tall Rear Rampgate W/ Coil Spring Assist |
| TIRE/WHEEL | Spare Tire (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
| TIRE/WHEEL | Spare Tire Upgrade (ST225/75R-15 LR-D) |
| TIRE/WHEEL | Tire Upgrade (ST225/75R-15 LR-D) |
