Big Tex 60"x10' Single Axle Vanguard
Call for Quote
(803) 372-9795Richburg, SC

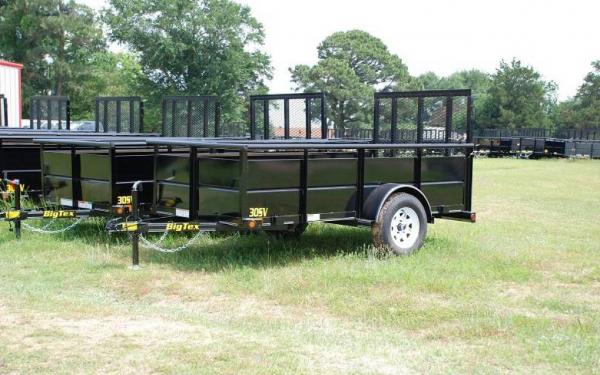

When its time to work, its time for the 30SV Single Axle Vanguard Trailer. Built-strong to haul your landscaping equipment without hassle from job to job, the 30SV features a pipe-top rail and higher sides to protect cargo and keep tools in place and ready to go. And if youre looking to take your landscaping operations to the next level, you can expand your hauling capabilities with an optional rear ramp gate - perfect for transporting a variety of vehicles, including golf carts, ATVs, side-by-sides, and more.
- Overview
- Features/Specifications
- Standard/Optional Equipment
- Financing
Overview
Big Tex 60"x10' Single Axle Vanguard
30SV-10BK
Specs:
- G.A.W.R. 2,995#
- Coupler 2" A-Frame
- Safety Chains 1/4" Grd. 30 w/Safety Latch Hook (2 each)
- Jack 2K Top Wind (Bolted On)
- Tongue 3" Channel
- Top Rail 2" Pipe -- 30SV / 2-3/8" Pipe on 35SV
- Frame 3" x 2" x 3/16" Angle
- Crossmembers 3" x 2" x 3/16" Angle
- Uprights 3" x 2" & 2" x 2" Angle
- Fenders 9" x 32" Rolled Formed w/Back
- Axle 3,500# EZ Lube w/Brake Flanges
- Suspension Multi-Leaf Slipper Spring
- Tire ST205/75-15 Load Range C
- Wheel 15 x 5 White Spoke 5 Bolt
- Floor 2" Pine
- Lights LED D.O.T. Stop, Tail, Turn, & Clearance
- Elec. Plug 4-Way Flat w/Loom
- Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish
- Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish
Standard Features:
- Safety Chains Attached w/Cold Rolled Eyelets
- Sand Foot on Jack
- Lower Jack Support Plate
- 29-3/8" Tall 16 Ga. Sides w/24" V-Crimped Steel Panels
- 4 Tie Down Loops Inside Bed
- Top Rail Capped w/Self Sealing Plugs
- Floor Secured w/Torx Screws
- 3,500# EZ Lube Axle w/Brake Flanges for Easy Brake Addition
- Grommet Mount Sealed LED Lighting
- Availability:
- In Stock
- Axle Config:
- Single
- External Width:
- 60"
- External Length:
- 10'
- Hitch Type:
- Bumper Pull
- Category:
- Landscape Trailers
- Year:
- 2014
- Condition:
- New
- Material:
- Steel
- Color:
- Black
- GVWR:
- 2995
Features/Specifications
Features
| Axle | 3,500# Quick Lubricating Axle w/ Brake Flanges |
|---|---|
| Jack | 2,000# Top Wind (Bolted On) |
| Tire | ST205/75R-15 Load Range C |
| Floor | 2" Treated Pine or Douglas Fir* |
| Frame | 3" x 2" x 3/16" Angle |
| Sides | 24" Tall V-Crimped Steel Panels (16 Ga.) |
| Wheel | 15 x 5; Black Mod, 5 on 5 Bolt Pattern |
| Finish | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| Tongue | 3" Channel |
| Coupler | 2" A-Frame |
| Fenders | 9" x 32" Rolled Formed w/ Back |
|---|---|
| G.V.W.R. | 2,995# |
| Top Rail | 2" x 2" Square Tubing |
| Elec. Plug | 4-Way Flat w/ Loom |
| Hitch Type | Bumper Pull |
| Suspension | Multi-Leaf Spring |
| Crossmembers | 3" x 2" x 3/16" Angle |
| Finish (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| Safety Chains | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 2,995# |
Specifications
Big Tex 30SV Single Axle Vanguard Trailer
| Model | Description |
|---|---|
| 30SV-08 | 60" x 08' Single Axle Vanguard Trailer |
| 30SV-10 | 60" x 10' Single Axle Vanguard Trailer |
| 30SV-12 | 60" x 12' Single Axle Vanguard Trailer |
Dimensions
| Length | A | B | C |
|---|---|---|---|
| 8' | 97-1/2" | 61" | 36-1/2" |
| 10' | 97-1/2" | 61" | 36-1/2" |
| 12' | 145-1/2" | 85" | 61-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 8' | 870# | 2,125# | N/A |
| 10' | 970# | 2,025# | N/A |
| 12' | 1,070# | 1,925# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- (4) Stake Pockets on Outside of Frame
- Set Back Jack
- Quick Lubricating Hubs
- Premium Brand Axle
- Durable Top Rail
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Radial Tires
- Brake Flanges on Axle for Easy Brake Addition
- Removable Sand Foot on Jack
- A-Frame Channel Tongue
- 29-3/8" Tall Sides w/ 24" V-Crimped Steel Panels
Optional Equipment
| Category | Description |
|---|---|
| BODY | Blackwood Pro Rubber Infused Floor |
| BRAKES | Electric Brakes w/ Complete Break-Away Kit |
| CARGO CONTROL | 3 Place Weed Trimmer Racks (Bolt On) |
| CARGO CONTROL | Additional Stake Pockets |
| CARGO CONTROL | Additional Tie Loops |
| CARGO CONTROL | Bolt-On Landscape Box (24" x 24" x 64-1/2") |
| COUPLER | 2" Forged Coupler |
| JACK | 2,000# Fold-Up Jack |
| RAMPS | 4 Tall Rear Rampgate |
| RAMPS | 5 Tall Rear Rampgate |
| TIRE/WHEEL | Spare Tire & Wheel (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
